Barcode Label Information

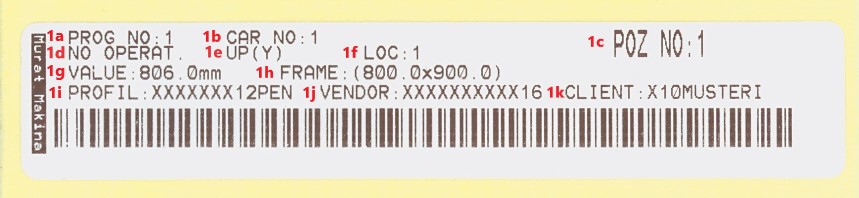

Sample Label
1. Label Text Descriptions
1a. Prog No :
This value is taken from the column 1 of the batch file.
1b. Car/Trolley No
This value is taken from column 11 of the batch file.
1c. POZ No
This value is taken from column 9 of the batch file.
1d. Operation Info
This value is taken from column 15 of the batch file.
1d. Operation Descriptions
| Bathc File Value | Label Equivalent | Description |
|---|---|---|
| 0 | NO OPERAT. | |
| 1 | WATER SLOT | |
| 2 | HANDLE | |
| 3 | HINGE | |
| 4 | D. OPENING | Double opening |
| 5 | S. O. LEFT | Single opening left |
| 6 | S. O. RIGHT | Single opening right |
| 7 | D. O. LEFT | Double opening left |
| 8 | D. O. RIGHT | Double opening right |
| 9 | V. O. LEFT | |
| 10 | RIGHT O. DOOR | Right opening door |
| 11 | LEFT O. DOOR | Left opening door |
| 12 | VASISTAS | Top opening |
1e. Part Assembly Location
This value is taken from column 10 of the batch file.
1e. Location Descriptions
| Bathc File Value | Label Equivalent | Description |
|---|---|---|
| 1 | UP(Y) | Up part |
| 2 | RGT(X) | Right part |
| 3 | BOT(Y) | Bottom part |
| 4 | LFT(X) | Left part |
| *** |
1f. Location / Box No
This value is taken from column 12 of the batch file. Box number of Trolley.
1g. Value / Part Length
This value is taken from column 2 of the batch file.
1h. Frame
This value is taken from column 2 and column 13 of the batch file.
These values are data with the source tolerance deducted.
1i. Profile Code
This value is taken from column 3 of the batch file.
1j. Vendor / Dealer
This value is taken from column 16 of the batch file.
1k. Client / Cusotmer / Order No
This value is taken from column 8 of the batch file.
2. Barcode Text Descriptions
Sample Barcode:
K1001PROFILE CODE01289400199400
| K | 1 | 001 | PROFILE CODE | 0 | 1 | 28940 | 0 | 19940 | 0 |
|---|---|---|---|---|---|---|---|---|---|
| Digit 1 | Digit 2 | Digit 3..5 | Digit 6..17 | Digit 18 | Digit 19 | Digit 20..24 | Digit 25 | Digit 26..30 | Digit 31 |
| Fixed Character | Trolley | Box | Profile Code | Gasket Info | Color Info | Cut Length (28940 = 2894.0mm) | Fixed Character | Other Side Length (19940 = 1994.0mm) | Fixed Character |
Gasket Info
| Value | Description |
|---|---|
| 0 | Profile without gasket |
| 1 | Profile with gasket |
Color Info
| Value | Description |
|---|---|
| 1 | White profile |
| 2 | Bottom colored profile |
| 3 | Top colored profile |
| 3 | Bottom-Top colored profile |
